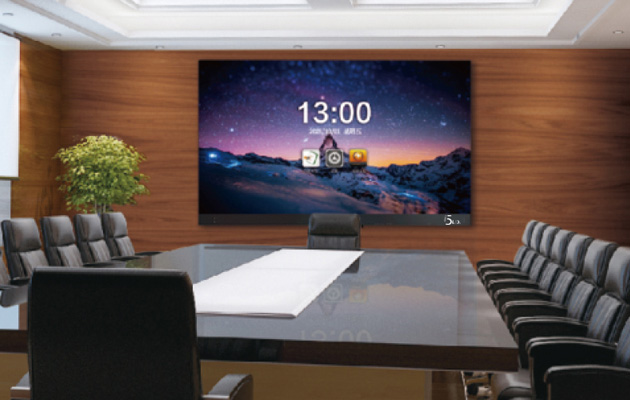

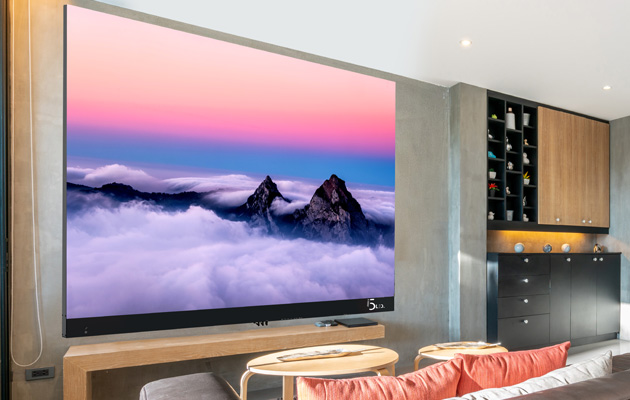

INTERIOR LED PRODUCTS
All-in-One Ultra Thin LED Display
ALTERNATIVE SOLUTION TO LCD WALLS
1080P
& 4K (ULTRA
SERIES) CONTENT
FINE &
ULTRA FINE
PITCH
BRIGHT
& VIVID
ULTRA THIN,
ALL IN ONE
SOLUTION
EASY INSTALL,
SERVICEABLE
PARTS
TECHNICAL
| NAME: | iCV109S-1.2 |
| PIXEL PITCH: | 1.2mm |
| RESOLUTION: | 1,920 x 1,080 |
| BRIGHTNESS: | 800+ Nits |
| LED TYPE: | SMD |
| REFRESH RATE: | 3,840 Hz |
| POWER*: | 672 Watts |
| SERVICE: | Front |
| HEIGHT: | 53.6″ (1360.8mm) |
| WIDTH: | 95.2″ (2419.2mm) |
| DEPTH: | 1.1″ (28mm) |
| WEIGHT: | 217.7 Lbs (98.8 Kg) |
TECHNICAL
| NAME: | iCV130S-1.5 |
| PIXEL PITCH: | 1.5mm |
| RESOLUTION: | 1,920 x 1,080 |
| BRIGHTNESS: | 800+ Nits |
| LED TYPE: | SMD |
| REFRESH RATE: | 3,840 Hz |
| POWER*: | 952 Watts |
| SERVICE: | Front |
| HEIGHT: | 63.8″ (1620mm) |
| WIDTH: | 113.4″ (2880mm) |
| DEPTH: | 1.1″ (28mm) |
| WEIGHT: | 309 Lbs (140 Kg) |
TECHNICAL
| NAME: | iCV138S-1.5 |
| PIXEL PITCH: | 1.5mm |
| RESOLUTION: | 1,920 x 1,080 |
| BRIGHTNESS: | 800+ Nits |
| LED TYPE: | SMD |
| REFRESH RATE: | 3,840 Hz |
| POWER*: | 1,075 Watts |
| SERVICE: | Front |
| HEIGHT: | 67.8″ (1721.3mm) |
| WIDTH: | 120.5″ (3060mm) |
| DEPTH: | 1.1″ (28mm) |
| WEIGHT: | 348 Lbs (158 Kg) |
TECHNICAL
| NAME: | iCV164S-1.8 |
| PIXEL PITCH: | 1.8mm |
| RESOLUTION: | 1,920 x 1,080 |
| BRIGHTNESS: | 800+ Nits |
| LED TYPE: | SMD |
| REFRESH RATE: | 3,840 Hz |
| POWER*: | 1,511 Watts |
| SERVICE: | Front |
| HEIGHT: | 80.4″ (2041.2mm) |
| WIDTH: | 142.9″ (3628.8mm) |
| DEPTH: | 1.1″ (28mm) |
| WEIGHT: | 490 Lbs (222 Kg) |
*Typical Power Consumption
Different pitch options, COB technology also available as well as 4k resolution. Contact us for more details.

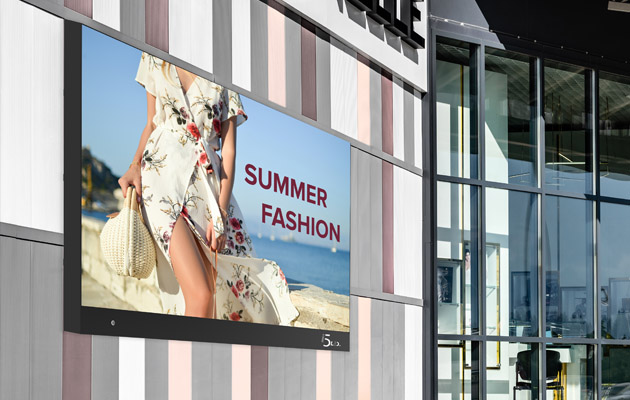

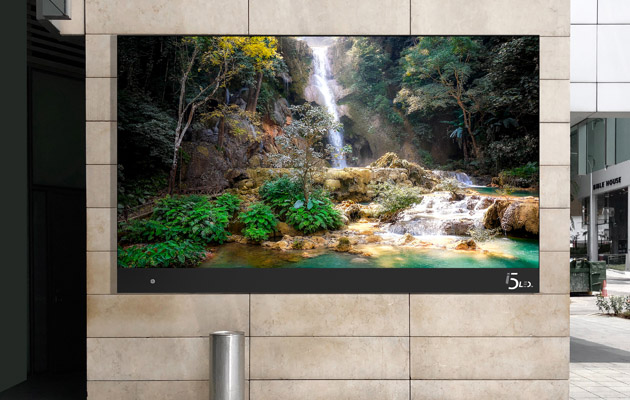

EXTERIOR LED PRODUCTS
All-in-One Thin LED Display
OUTDOOR RATED LED DISPLAY
16:9
ASPECT
RATIO
IP65,
WEATHER-
PROOF
BRIGHT
& VIVID
THIN,
ALL IN ONE
SOLUTION
EASY INSTALL,
SERVICEABLE
PARTS
TECHNICAL
| NAME: | eCV130 |
| PIXEL PITCH: | 1.5mm |
| RESOLUTION: | 1,920 x 1,080 |
| BRIGHTNESS: | 4,000+ Nits |
| LED TYPE: | Flipchip 1010 LED |
| REFRESH RATE: | 3,840 Hz |
| POWER*: | 1,109 Watt |
| SERVICE: | Front |
| HEIGHT: | 89.4″ (2,272mm) |
| WIDTH: | 1,13.7″ (2889mm) |
| DEPTH: | 7.1″ (180mm) |
| WEIGHT: | 62.2 Lbs (255 Kg) |
TECHNICAL
| NAME: | eCV173 |
| PIXEL PITCH: | 1.8mm |
| RESOLUTION: | 2,048 x 1,152 |
| BRIGHTNESS: | 4,000+ Nits |
| LED TYPE: | Flipchip 1010 LED |
| REFRESH RATE: | 3,840 Hz |
| POWER*: | 1,971 Watts |
| SERVICE: | Front |
| HEIGHT: | 110.7″ (2,812mm) |
| WIDTH: | 151.5″ (3,8490mm) |
| DEPTH: | 7.1″ (180mm) |
| WEIGHT: | 881.8 Lbs (400 Kg) |
TECHNICAL
| NAME: | eCV217 |
| PIXEL PITCH: | 2.5mm |
| RESOLUTION: | 1,920 x 1,080 |
| BRIGHTNESS: | 4,000+ Nits |
| LED TYPE: | Flipchip 1010 LED |
| REFRESH RATE: | 3,840 Hz |
| POWER*: | 3,079 Watts |
| SERVICE: | Front |
| HEIGHT: | 131.5″ (3,340mm |
| WIDTH: | 189.3″ (4,809mm) |
| DEPTH: | 7.1″ (180mm) |
| WEIGHT: | 1,433 Lbs (650 Kg) |
*Typical Power Consumption
